SYSTÈMES ÉLECTRIQUES MATÉRIEL
Fairbanks Morse Defense and Research Tool & Die Works (RT&D) are the principal suppliers of mission critical marine electrical systems hardware. As leaders in developing innovative designs and manufacturing processes for electrical-systems hardware and metal stamping fabrication, we have a reputation for building one of the strongest and most durable products on the market.
ENGINEERED FOR EXCELLENCE
Nos services d'usinage sur mesure nous permettent de développer des solutions innovantes pour relever les défis les plus difficiles de nos clients. Nous offrons une variété de produits d'outillage et de matrices, tous fabriqués par des outilleurs et des ingénieurs concepteurs qualifiés.
discover our full range of products
Need details on our engines, systems, and solutions? Download or request a hardcopy of the FMD Catalog for a full overview, including specs and insights.
Major Wireways Inverted “T” Style
Les grandes voies ferrées : le trapèze
1-13 – Over/Under Crosstier Heavy Duty
1-14 – Over-Under Crosstier With Tabs
Descendeurs de câbles et accessoires
Chemins de fer intermédiaires
3-04 – T-Bar Hanger Intermediate
3-06 – T-Bar Hanger Heavy Duty
3-07 – T-Bar Hanger Heavy Duty Inverted T
3-10 – Cable Support Honeycomb Single
3-11 – Cable Support Honeycomb Double
Téléphonie locale
7-03 – EFxxB Light Leg – Weld Stud Type
7-04 – Leg Support – Bolt on Brace
7-05 – Light Feet Adjustable Type
7-06 – Hanger Leg – Heavy Duty
7-07 – Hanger Leg – Light Duty
7-08 – EFxxW Light Stool Leg – Weld Type
7-09 – EF70B Light Stool Leg – Weld Stud Type
7-10 – EF70W Light Stool Leg – Weld Type
7-13 – EFP1 & EFP2 Light Leg

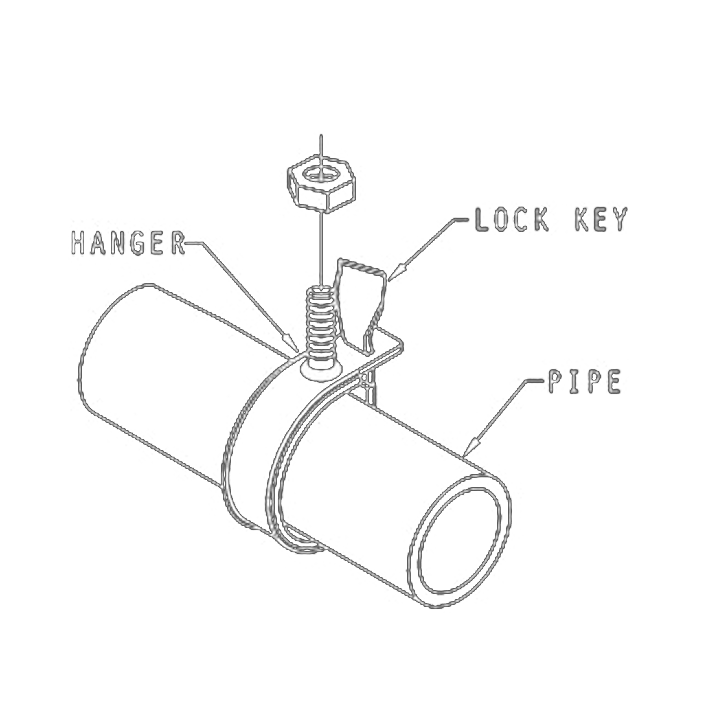

9-03 – Key Lock Pipe Hanger – Stud Mount
9-04 – Key Lock Pipe Hanger – Weld Mount
9-07 – Leg Support Bolt on Brace
PIPE CLAMPS
Offered with a neoprene rubber liner for cold systems or a fiberglass liner for steam and other high temperature applications.
Type de clip standard
Pied d'appui prolongé
Monopied soudé
Style double jambe
PIPE HANGERS
Offered with a neoprene rubber liner for cold systems or a fiberglass liner for steam and other high temperature applications.
Suspensions de tuyaux à bloc de caoutchouc
Suspensions de tuyaux en blocs d'acier
10-04 – Cable Rack Flat Bend – 30, 45, 60
10-05 – Cable Rack Flat Bend – 90
10-07 – Cable Rack T and Cross
10-08 – Cut-To-Length Cable Tray – Heavy Duty
10-09 – Cable Tray – Heavy Duty Bent
10-10 – Cable Tray – Light Duty Trough
10-11 – Cable Tray – Light Duty Trough (Wide)
10-12 – CTG Series Rack Mounting Clip

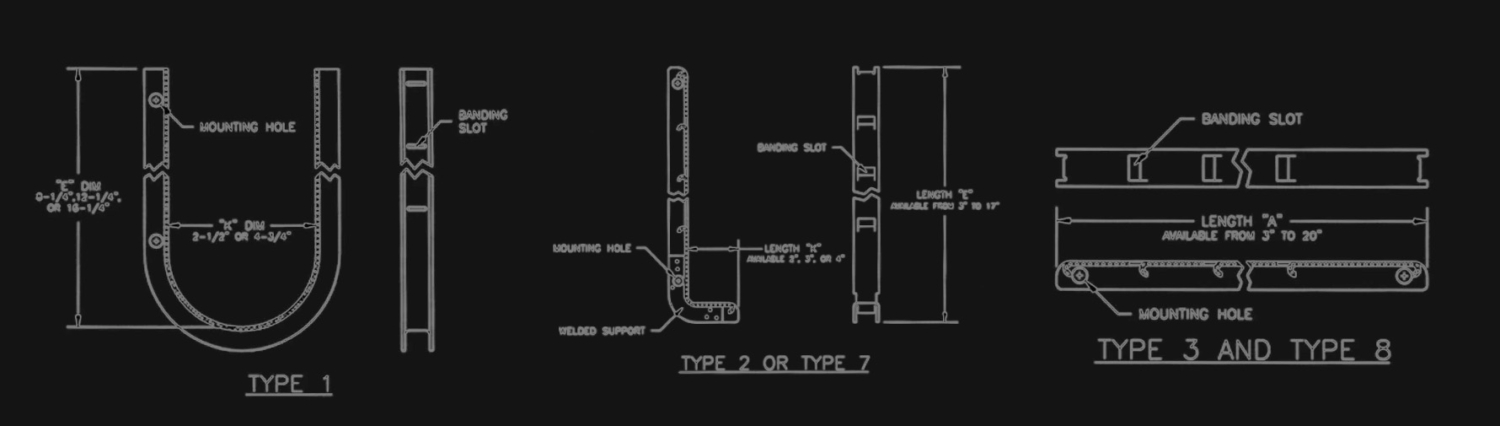

BANDING TYPE CABLE HANGERS
Fabricated from mild steel painted with a weldable zinc chromate primer.
Banding Type Cable Hangers are available in accordance with the following:
– Newport News Shipbuilding Drawings #: 185669, DF188119
– Electric Boat Drawing #: 2635-119-01
– BUSHIPS Drawing #: 302-1716084
– NAVSEA Drawing #: 803-6405639

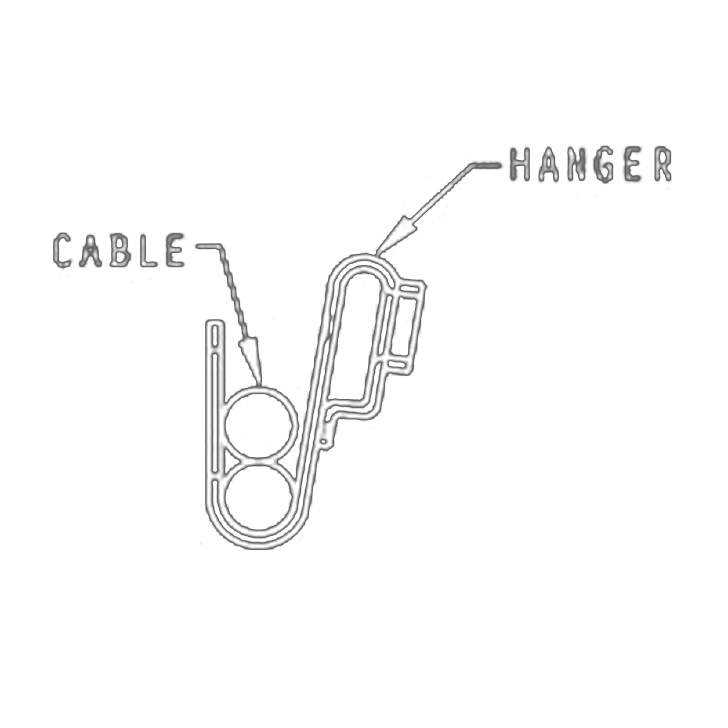

LOCAL BANDING HANGERS
Offered in standard sizes ranging from ¾” through 6” wide. Available in zinc plated mild steel and type 316 stainless steel.

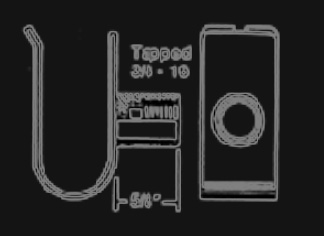

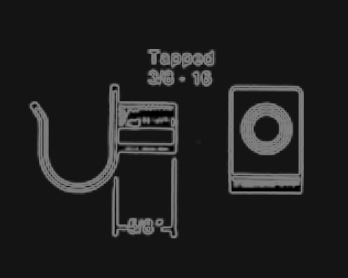

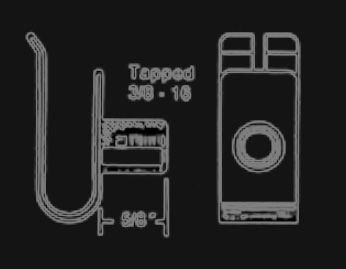

TAPPED CABLE HANGERS
Offered in standard sizes ranging from ¾” through 6” wide. Available in zinc plated mild steel and type 316 stainless steel.
Tous les supports de câbles taraudés sont fabriqués et testés conformément au dessin NAVSEA 803-5001027 (Section 4) et ont été testés avec succès selon MIL-S-901C (Grade A Shock) et MILSTD-167-1 (Type I Vibration).
Type de sertissage simple
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 1020 | De .305 à .371 |
| 1040 | De .375 à .531 |
| 1051 | From .531 to 680 |
| 1026 | From .437 to 750 |
| 1027 | De .680 à .900 |
| 1030 | De 0,750 à 1,00 |
| 1031 | De 0,900 à 1,224 |
Type de sertissage double
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 2001 | De .305 à .371 |
| 1052 | De .375 à .531 |
| 1162 | From .531 to 680 |
| 2002 | From .437 to 750 |
| 2003 | De .680 à .900 |
| 2004 | De 0,750 à 1,00 |
| 2005 | De 0,900 à 1,224 |
Type de triple sertissage
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 1170 | .531 |
| 1171 | De .325 à .371 |
Type de sertissage à quatre empilements
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 1181 | .531 |
Type de sertissage à quatre empilages et à double taraudage
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 1041 | .500 |
| 1042 | 1.000 |
| 1043 | .750 |
| 1044 | 1.224 |
| 1045 | .680 |

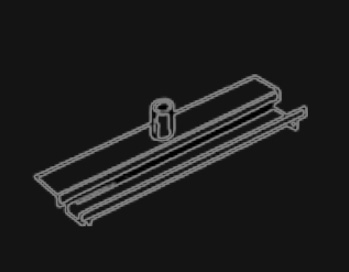

Type de plaque de chargement par le bas
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 15002 | 2 |
| 15003 | 3 |
| 15004 | 4 |
| 15006 | 6 |
| 15008 | 8 |
Chargement par le haut (inversé) Type de plaque
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 16002 | 2 |
| 16003 | 3 |
| 16004 | 4 |
| 16006 | 6 |
| 16008 | 8 |

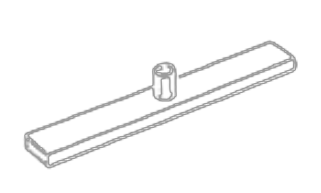

Type tubulaire Type
| CAT. NO. | DIA. DU CÂBLE (POUCES) |
| 0150 | 1.50 |
| 0250 | 2.50 |
| 0350 | 3.50 |
| 0450 | 4.50 |
| 0550 | 5.50 |
| 0650 | 6.50 |
| 0750 | 7.50 |
Metal Stamping
Stamping Presses
| Dos ouvert Inclinable : | |
| (7) Béatitude | 10-95 Tons |
| (6) Niagara | 45-105 Tons |
| (5) V&O | 10-65 Tons |
| (2) Johnson | 30-45 Tons |
| Rockford (2) | 50 tonnes |
| (2) Walsh | 10-65 Tons |
| (1) Alva Allen | 25 tonnes |
| (1) Canullo | 90 tonnes |
| (1) Quotidiennement | 45 tonnes |
| (1) Fédéral | 60-75 Tons |
| (1) L&J | 50 tonnes |
| (1) McDonald | 15 tonnes |
| (1) Perkins | 75 tonnes |
| (1) Pexlo | 60 tonnes |
| (1) Rouselle | 7 tonnes |
| (1) Toledo | 50 tonnes |
| (1) Warco | 50 tonnes |
| Côté droit : | |
| (7) Béatitude | 75 tonnes |
| Dos ouvert Inclinable : | |
| (2) Benchmaster | 5 tonnes |
| (3) V&O | 3 tonnes |
Deep Drawing
Deep Drawing Presses
| Mécanique : | |
| (5) Béatitude | 50-125 Tons |
| Hydrolique : | |
| (1) HPM | 175 tonnes |
| (1) HPM | 550 tonnes |
| (1) Lac Érié | 500 tonnes |
Pièces et service
Fairbanks Morse Defense offers an extensive portfolio of services to optimize performance, ensure reliability, and extend the life of your fleet – from the day its commissioned and for the many years that follow. Learn more about what our custom solutions can do for you.
Solutions commerciales
Outre l'industrie de la défense, Fairbanks Morse Defense travaille également avec l'industrie commerciale. Nos clients commerciaux peuvent être des centrales municipales et nucléaires, des hôpitaux, des universités et des applications internationales d'énergie stationnaire.
Need Assistance? We’re Here to Help.
Contact us for product information, request a quote, service support, or any questions. Our team is ready to provide solutions tailored to your needs.
